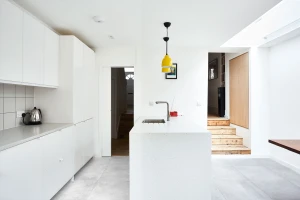

7. IKEA concealed drawer units

8. Kitchen & dining hub

9. Side-infill extension

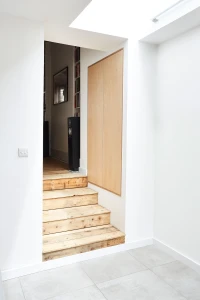

10. Side infill-extension

11. Access to rear reception

12. Rear reception

13. Ground floor WC

1. Strip-out

2. Rotten floor joists

3. Structural separation

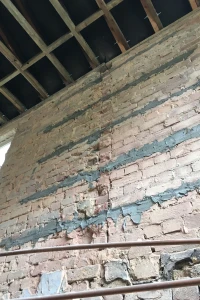

4. Helifix structural repairs

5. New reinforced roof strucutre

7. New reduced rear projection

8. 1st floor reconfiguration

9. New strcutural knock through

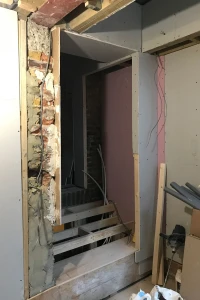

10. Connection to rear reception

11. New boiler

12. Underfloor heating

13. New patio

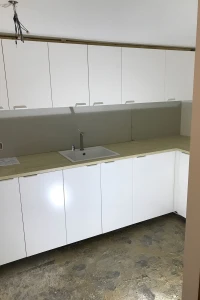

14. New basement utility room

15. New IKEA kitchen

16. Kitchen window

17. External globe light fittings

1. Proposed site plan

2. Existing & proposed ground floor plans

3. Existing & proposed first floor plans

4. Proposed long section

5. Proposed rear elevation

6. Kitchen layouts

7. Shower room layouts

1. Street elevation

2. Entrance hallway

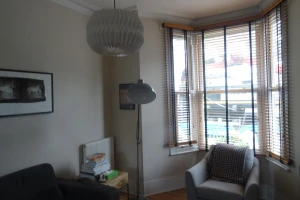

3. Front reception

4. Double reception

5. Ground floor shower

6. Kitchen

7. Garden access

8. Basement

9. Landing

10. Bathrooom

11. Main bedroom

12. Bedroom 2

13. Bedroom 3

14. Boiler

15. Solar heating system

16. Extended rear projection

17. Side return

18. Small rear garden

Project

Stoke Newington #125

Client

Couple

Brief

Side infill extension, kitchen & dining hub, basement utility room.

Location

Hackney N16

Budget

£160k

Duration

22 weeks - Summer 2019

Project Overview:

The property is a Victorian mid-terrace home in Stoke Newington, just off of the A10 Stoke Newington High Street.

The rear projection of the property had been rebuilt at some point in the last 45 years and the quality of the construction was poor, with no discernible structural connection with the main building. The replacement rear projection had also been built somewhat longer than any such rear projections at the neighbouring properties, which combined with the particularly small garden, created a fairly imbalanced property. As such, it was agreed that one of the key design strategies would be to reduce the length of the existing rear projection, back to that of the original building line. Despite this reduction to the overall floor area at both ground and first floor, it was agreed that this would give a better proportion of internal space, and also allow a small but fundamental increase to the size of the rear garden.

After this key strategy was agreed, the primary objective of the brief was to reconfigure the rear ground floor, including the partial infill of the side-return, in order to provide a simple, modern living & dining space, with significantly improved visual connection to the rear garden, and also a direct physical connection with the double reception space.

The existing basement area was also reconfigured to provide a simple utility and laundry area, together with dedicated bike storage and better organised general storage. A new compact ground floor WC was also provided.

At first floor a compact modern shower room was provided, together with general reconfiguration to the now slightly reduced 3rd bedroom. A new heating system was also integrated, with new radiators, services & finishes throughout the property. A carefully coordinated palette of standard materials and products were then employed to provide a high performance & cost-effective modern aesthetic.

Team:

Architect: ARCHEA

Building Control: Assent South East

Engineer: Croft Structural Engineers

Contractor: London Dream Building
